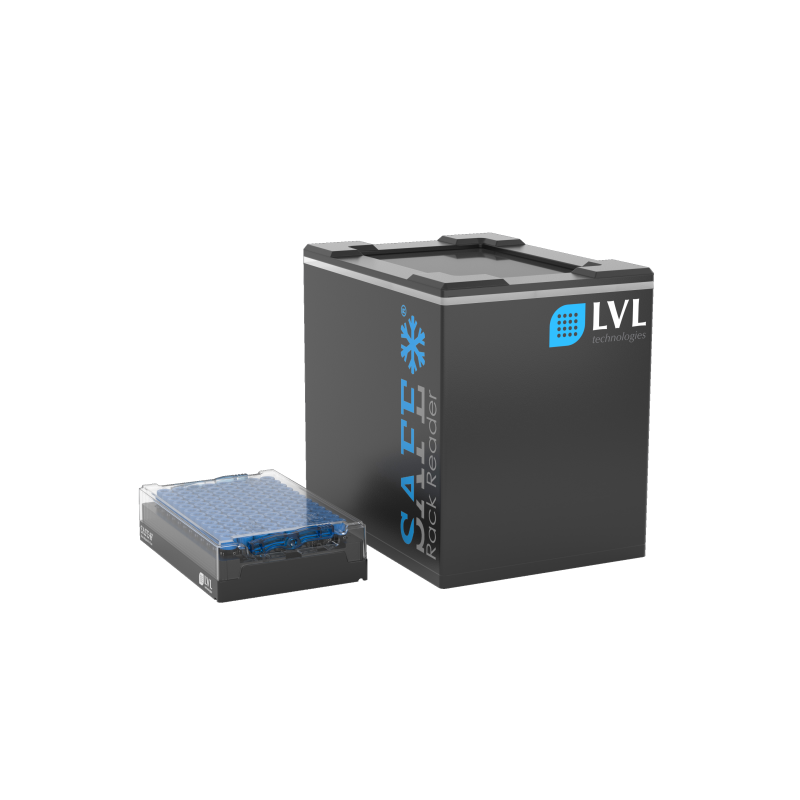

LVL Technologies Rack Reader

LVL fully automated SAFE® Tube AND Rack READER.

Scans single tubes: As well as racks, the SAFE® Rack Reader decodes single tubes with 2D codes by placing the tube anywhere on the reading window.

• Compatible with LabCollector LIMS.

• Scans SBS format sample racks: Decodes any 24, 48, or 96 format well racks without any configuration in less than a second!

• Scans single tubes: Single tubes with 2D codes can also be scanned by placing the code anywhere on the reading window.

• Power supply: No additional cable required - connect your scanner to your laptop via USB cable and off you go!

• Automatic Rack Detection: When a rack is placed on the scanner, built-in rack sensors will detect it automatically. Decoding begins when a rack has been detected, requiring no further action from the user.

• No Mode Changes Required: Switch between different racks and tubes instantaneously without the need for reconfiguration—software adjusts to optimal reading parameters.

• Dynamic A1 Positioning: Built-in sensors will detect the A1 position of the rack and adjust the A1 position accordingly.

• No License Key Required: Can be connected to an unlimited number of different PCs.

• GxP Ready: Includes user management and audit trail.

• Smart Signal Lighting System: Fully configurable RGB LEDs indicate the state of the current rack being scanned. E.g., red can be used to signify a missing tube.

• Keyboard Wedge Functionality (only for single tube scanning): The device acts as a keyboard. Simply connect it to an application, and the characters belonging to a code will be sent there directly when it is scanned.

• Cryoguard Technology: Cryoguard protects the scanner against frost and condensation when used with cold labware.

• Multiple Export Options: CSV, JSON, PDF, XLS, XMS, and TCP/IP data export options available.
